Product Features
Uv laser marking machine is developed by 355nm ultraviolet laser, the machine uses three-step cavity frequency doubling technology, relying on laser energy to break the bond between atoms or molecules, so that it becomes a small molecule gasification, UV light focusing spot is very small, mainly used in hyperfine marking, special materials marking.
Uv laser marking machine, especially suitable for food, medical packaging and other polymer materials packaging bottle surface marking; Flexible PCB board marking, scribing; Blind hole processing, material marking, microhole punching, high-speed division of glass materials and complex graphic cutting of silicon wafers and other applications.
Product Advantage
A wide range of applicable materials to make up for the lack of infrared laser processing capacity;
The beam quality is good, the focused spot is small, and the hyperfine marking can be realized.
Small heat affected zone, avoid being damaged by processed materials, high yield;
Marking speed, high efficiency, high precision;
No consumables, low cost of use and maintenance;
The whole machine has stable performance and can run for a long time.

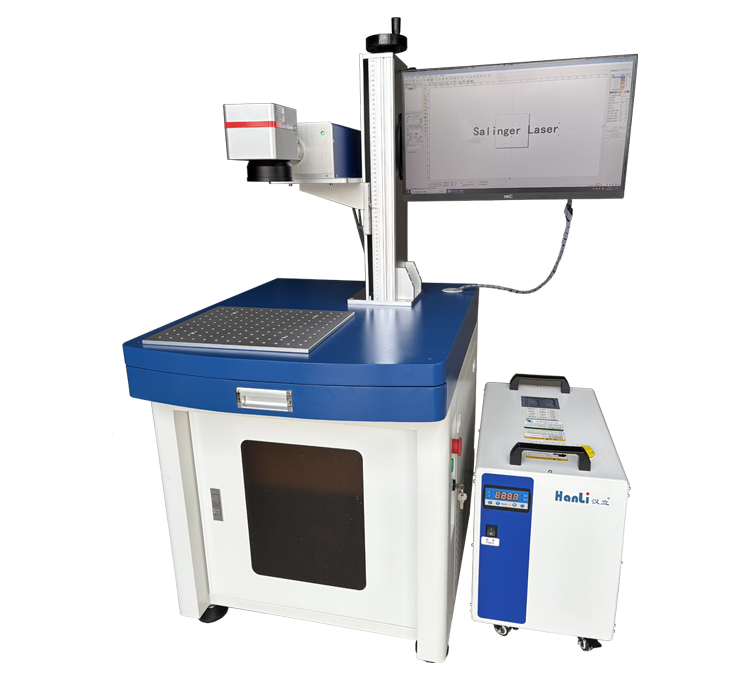

Uv laser marking
Product Parameter
Model | SLG-UV5 SLG-UV10 SLG-UV15 | ||
Laser Power | 5W/10W/15W | wavelength | 355nm |
Scope | 110mm×110mm 175mm×175mm 200mm×200mm | Carving depth | ≤5mm |
Carving Line Speed | ≤12000mm/s | Laser repetition frequency | ≤35KHz |
Minimum Character | 0.1mm | Minimum line width | 18μm |
Equipment Operating Temperature | 15°C-30°C | Cooling system | water-cooling |
Whole Machine Power | 1.2KW | Power demand | 220V/single-phase/50HZ/16A |
Marking sample
